How to Choose the Right Return Air Grille to Prevent Leaks and Bypass

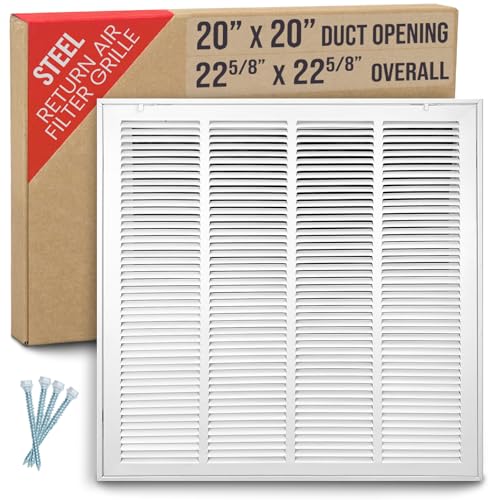

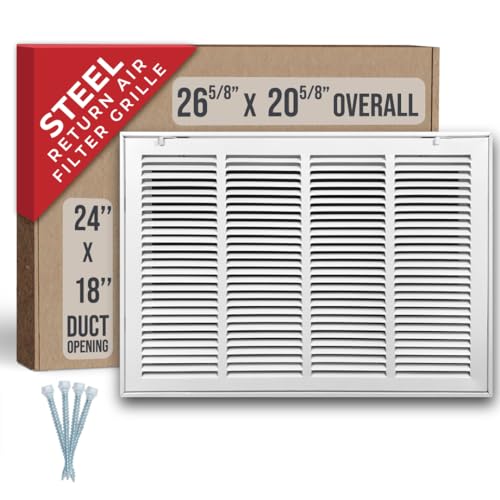

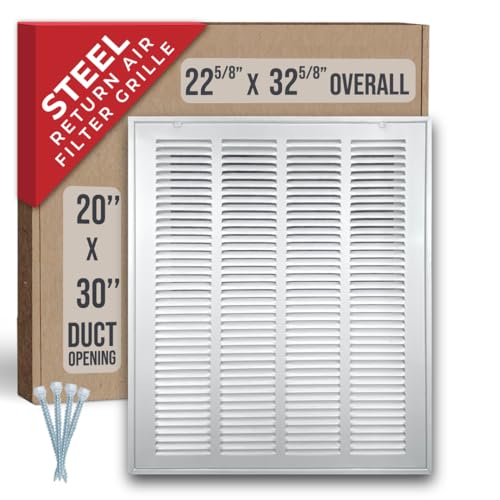

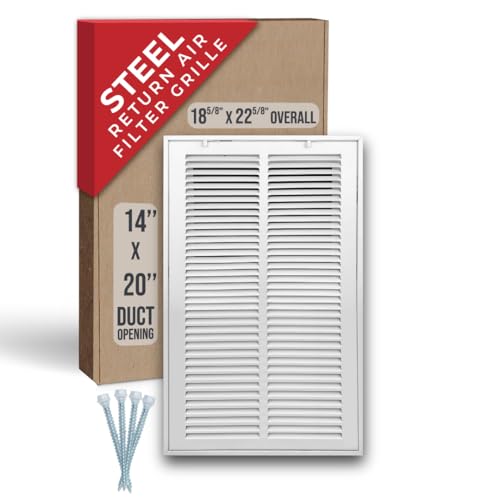

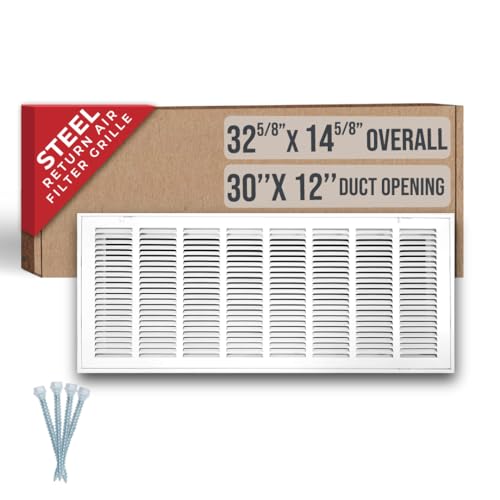

The root cause of filter bypass is a gap between the filter and the duct opening or a grille that doesn’t hold the filter squarely. Start by measuring the actual duct opening (the hole in the wall or ceiling), not the outer frame of your old grille. Measure width first, then height. Order the grille by the duct opening size; Handua grilles are designed so the listed size equals the duct opening. That ensures the grille overlays the wall joint and the filter seats inside the opening without gaps.

Filter thickness matters. These grilles accept standard 1" disposable filters — a common industry thickness. Using a filter that is thinner than the slot will allow air to leak around the media. Conversely, forcing a thicker filter into a grille made for 1" can prevent the door from closing properly or damage the frame. If you need thicker media for higher MERV ratings, choose a grille system explicitly rated for 2" or use a cabinet-style return that accepts deeper filters.

Look for these features when solving leaks and bypass: a robust steel frame that resists bending, a removable door or detachable cover that lets you seat the filter flush, adjustable retainers or clips to lock the filter in place, and concealed mounting holes so the grille sits flat. A powder-coated finish resists warping and helps maintain an even seal over time. Foam gasket tape placed between the grille flange and wall can close tiny gaps and is an inexpensive insurance against bypass.

Installation tips: check the grille on flat ground before mounting to confirm it’s square; if you see any dents or bends, return or replace it—deformations can prevent a tight seal. Use the included screws and tighten evenly at opposite corners to pull the frame flat. After mounting, insert the filter and confirm there are no visible gaps between the filter edge and the duct opening. If the latch feels loose or hinges are weak, reinforce with a thin strip of foam or add a small magnetic or mechanical clip to keep the door closed tightly.

Budget Tiers

Budget: Basic stamped-steel grilles that match the duct opening and provide removable doors. Expect good value and simple designs but watch for mixed reports on long-term hinge durability. Mid-Range: Better-finished steel frames, sturdier latches and more consistent fit; a good balance of durability and price for most homeowners. Premium: Heavier-gauge steel frames, larger-size options and tighter manufacturing tolerances. Premium units are preferable for large openings where frame flex could create bypass. Across all tiers, the most important factor is correct sizing and proper installation — a cheap grille installed correctly beats an expensive one that’s dented or badly mounted.
