Complete Home Furnace Filter & Return Grille Setup Guide (2026)

How to Choose the Right Product

How to Choose the Right Filter and Frame

Start with accurate measurements. Measure the actual opening at the grille or furnace slot and note both nominal and actual dimensions — many products list nominal sizes (like 18x18) but the real part can be a fraction smaller. When swap-in fit matters (to stop leakage), measure width, height, and depth. Depth determines whether a 1-inch, 2-inch, or 4-inch media fits; deeper media lasts longer but needs a matching slot or adapter frame.

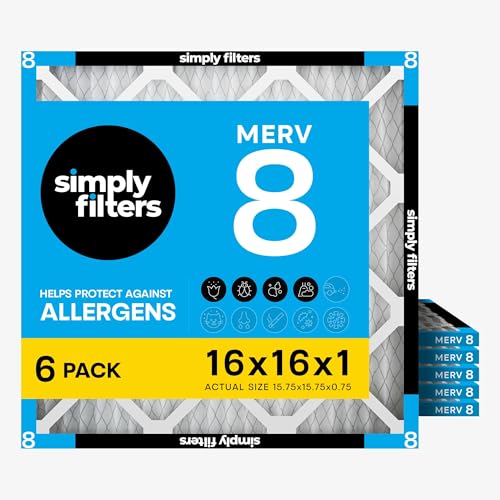

Match MERV rating to your needs. For most homes MERV 6–8 provides good dust and pet-dander control without overly restricting airflow. Higher MERV improves particle capture but can reduce airflow on older furnaces — if in doubt, check your furnace manual or consult an HVAC pro. Pleated and electrostatic media (featured in both Simply and Filterbuy lines) improve capture efficiency while preserving airflow.

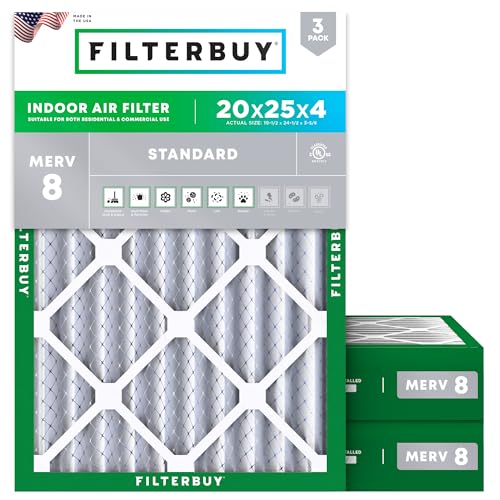

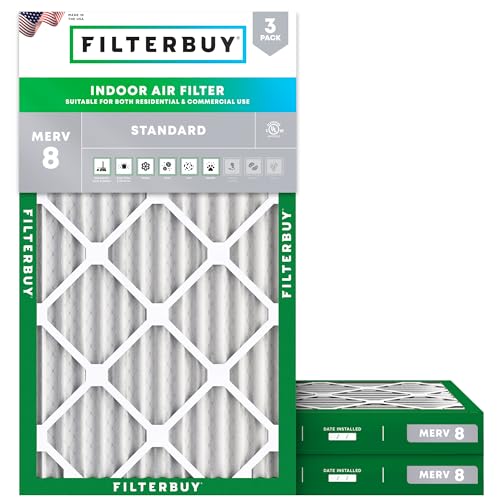

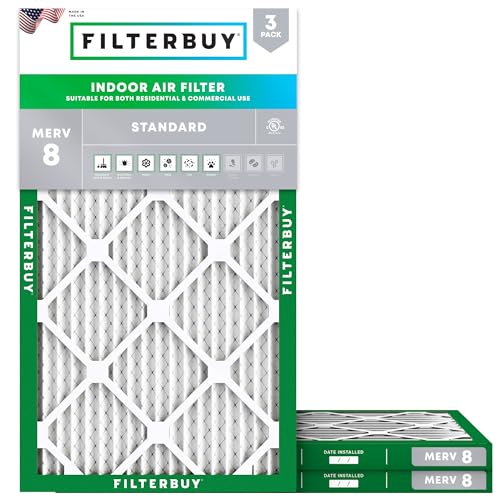

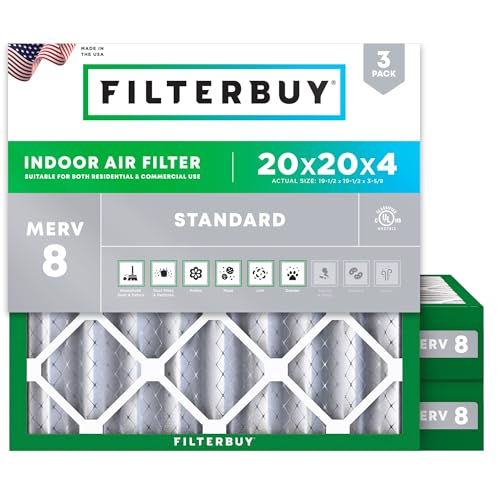

Frame types and sealing. A tight, stable frame reduces bypass leakage. Disposable 1-inch filters are cheap but often use thinner cardboard frames that can crease. Filterbuy uses beverage-board frames with wire backing for better durability — a smart choice if leakage and sturdiness concern you. For open-return grilles, use grille-mounted filter frames, magnetic or clip-on retainers, or build a wooden/plastic return grille adapter to hold thicker media. Add foam gasket tape or adhesive weather-stripping around the frame perimeter to seal small gaps and stop filter leakage into the surrounding ceiling or wall cavity.

Tools and sealing supplies to include in your kit. Keep these on hand: a metal tape measure, foam or rubber gasket tape, foil HVAC tape or mastic for duct seams, magnetic grille seals or return grille adapters, and a set of appropriate filters sized to your openings. Replace filters on schedule — typically every 60–90 days for 1-inch pleated filters, longer for 2"–4" media depending on dust load.

Budget Tiers

Budget kit: Expect basic 1-inch pleated filters and simple adhesive gasket tape. Best for renters or small rooms with low dust loads. Mid-range kit: Includes better-built pleated filters, foam gaskets, and a return grille adapter or magnetic retainer — good for most homeowners seeking durability and reduced leakage. Premium kit: Features 2" or 4" media filters with beverage-board or metal frames, professional-grade sealing tape or mastic, and custom-fit grille adapters — ideal when reducing service frequency and preventing bypass leakage is a priority.

Total estimated budget range for a complete kit: about $30–$250 depending on filter depth and frame upgrades. Budget builds are inexpensive; premium installations with deeper media and sturdy frames cost more but reduce replacements and leakage over time.
