How to Choose a Replacement Filter for Open Return Grilles (2026 Problem-Solution)

How to Choose the Right Product

How to Choose the Right Replacement Filter and Frame to Prevent Leakage

When your main problem is leakage and unusually shaped or recessed return openings, the right grille and filter choices focus on two things: a frame that seats the filter tightly, and a pleated filter sized and supported so no air can bypass the media. First, measure the duct opening (the hole in the wall or ceiling). Handua and other manufacturers list grille sizes by the duct opening — the outer face will typically add about 2 5/8" to each dimension. Measure width and height of the actual opening, not the existing grille face.

Choose a grille with a removable face or adjustable filter retainers. Removable faces let you press the filter firmly against the return box and install foam or rubber gasket material around the edge. Adjustable retainers let you take up small variances in depth for a snug fit. Fixed hinges are fine for standard installs, but if the opening is irregular or the return box is older, a removable face with retainers (and included filter) is easier to seal.

Pick the right filter type. Pleated 1" filters are the standard in the reviewed Handua line; pleated media seals better than thin flat filters and has more surface area for dirt without dramatically increasing pressure drop. For allergy control or fine dust, choose a higher MERV pleated filter — but be mindful of static pressure on smaller HVAC systems. If leakage is the issue, a slightly thicker pleated filter with a firm frame (or a filter with cardboard/metal frame) will press against the grille frame and reduce bypass.

Materials matter. Steel frames (powder-coated) resist warping, give a flush fit, and hold retainers or gaskets well; plastic frames are lighter but can flex and leave small gaps. If the return opening is in a high-moisture area, choose a rust-resistant metal or add a waterproofing sealant around the frame. For temporary or uneven openings, an adjustable frame or a simple wood trim box behind the grille can close gaps before mounting the grille.

To stop leakage, add these sealing steps: install a closed-cell foam gasket between grille face and wall, use filter retainer clips to press the filter to the box, caulk the frame perimeter where it meets the wall, and consider magnetic or rubberized seals if you need frequent access. Finally, check hinge and latch build quality — a grille that opens too easily or has a weak latch will flex and create bypass over time. If you want certainty, choose a removable‑face grille with adjustable retainers and a solid steel frame (those are the models that make sealing straightforward).

Budget Tiers

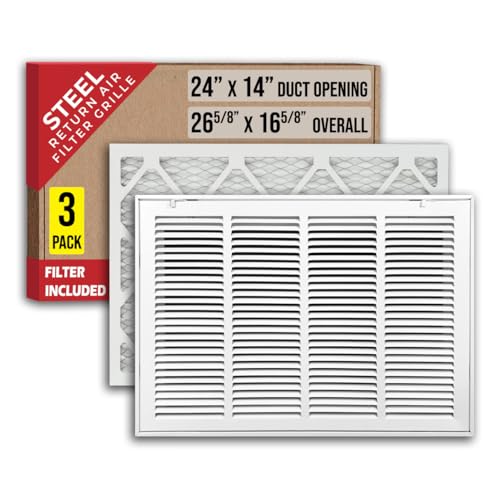

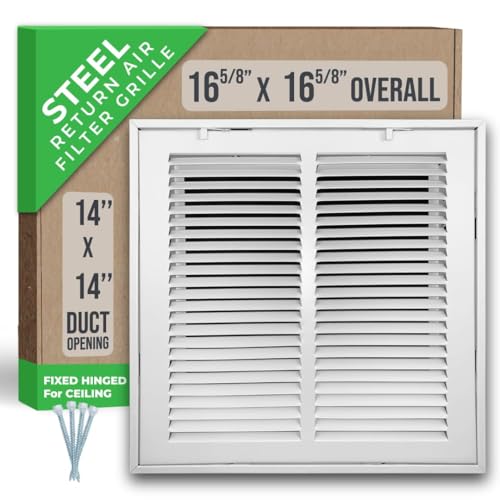

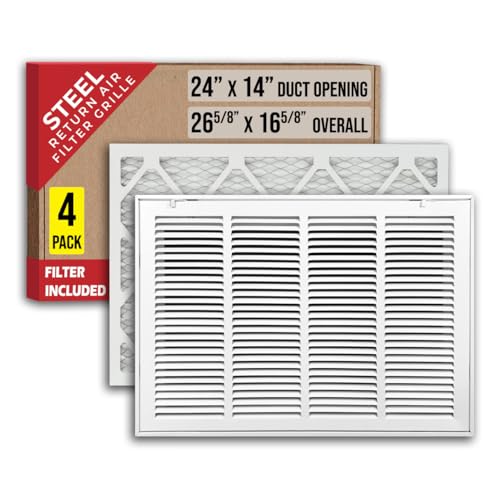

Budget: Basic removable or hinged steel grilles that accept 1" pleated filters. Good value but may need extra sealing (foam tape, caulking) to stop leakage — examples: the 14x20 and 14x24 Handua grilles. Mid-Range: Better gauge steel and sturdier hinge/face designs; may not include filters but offer a good balance of durability and price — example: the 14x14 hinged Handua grille. Premium: Removable-face units that include filters and adjustable retainers to create a tight seal out of the box; these cost more but save time and reduce leakage (example: the 24x14 Handua filter-included grille).
