How to Measure & Install Cabinet Pulls for a Professional Fit (2026 Guide)
Misplaced holes, uneven pulls, and tight project timelines are the three biggest pains when replacing or installing cabinet hardware. This guide shows DIYers and pros how to measure accurately, drill straight, and install pulls so the finished job looks custom. You'll get a step-by-step installation plan, the best tools (precision jigs and concealed pulls), and product picks chosen for build quality, ease of installation, and real-world durability based on hundreds of reviews.
Quick Answer
Use a precision aluminum jig like the TBVHOMM Aluminum Cabinet Hardware Jig to mark and drill repeatable holes, then install concealed edge pulls (Satanga) for a clean look. The TBVHOMM jig speeds up layout and keeps center-to-center measurements consistent for large runs.
Our Top Picks
Quick Comparison
Select 2-3 products to compare side-by-side
| Compare | Product | Rating | Price Tier | Key Feature | Best For | Action |
|---|---|---|---|---|---|---|
TBVHOMM Aluminum Jig
|
(3.3K+ ratings) | Premium | All-aluminum precision template | Large runs and pro installers | Check Price | |
Satanga Edge Pulls 6" (BN)
|
(1.1K+ ratings) | Budget | Back-mount concealed finger pull | Modern kitchens & minimal cabinet looks | Check Price | |
Satanga Edge Pulls 7.87" (Gold)
|
(1.1K+ ratings) | Premium | Long concealed pull, modern look | Long drawer fronts and continuous runs | Check Price | |
Satanga Edge Pulls 7.87" (BN)
|
(1.1K+ ratings) | Premium | Long brushed-nickel concealed pull | Clean, consistent kitchen runs | Check Price | |
Vicrays Aluminum Jig
|
(800+ ratings) | Budget | CNC-machined accuracy with steel bushings | DIYers on a budget who want precision | Check Price |

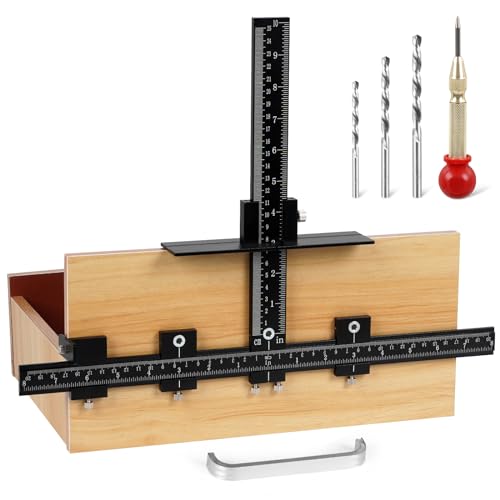

1. Aluminum Cabinet Hardware Jig, Punch Locator Drill Guide,Wood Drilling Dowelling Guide for Installation of Handles Knobs on Doors and Drawer, Cabinet Template Tool for Handles and Pulls
A heavy-duty, aircraft-grade aluminum cabinet jig built for repeatable center-to-center drilling. It saves time on batch installs and gives a durable, non-plastic template that holds calibration over many uses.
Key Specs
- Material: All aluminum alloy (aircraft-grade)
- Scale: Built-in accurate scale for measurements
- Portability: Sections divide for storage with pouch
- Application: Works for doors, drawer fronts, handles and knobs
Pros
- Durable all-metal construction for long-term use
- Speeds up repeated drilling once set up
- Wide compatibility with doors and drawer fronts
Cons
- Some users report occasional alignment variance
- Screw-hold mechanism can loosen during heavy use
Best For: Large runs and pro installers

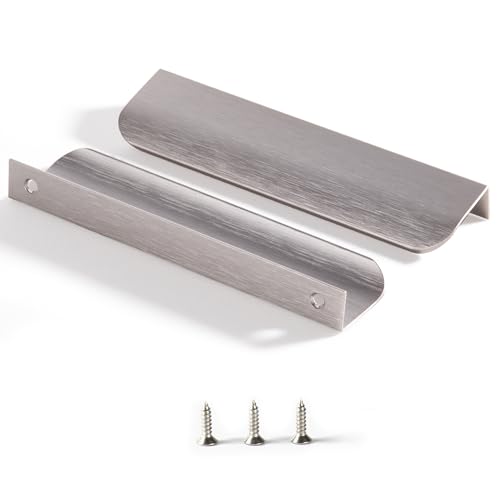

Check Latest Price on Amazon2. Satanga Edge Finger Tab Pulls for cabinets Kitchen Concealed Drawer Pull Aluminum Flat Hidden Back Mount Door Handles for Home Pack of 10 Modern Brushed Nickel 6" Overall Length Easy Installation
Concealed aluminum edge pulls that install quickly with a powered Phillips driver and leave a clean, contemporary finish. The 5" center-to-center spec fits many modern drawer layouts and comes with extra screws for faster installs.
Key Specs
- Material: Aluminum with brushed nickel finish
- CC (center-to-center): 5" (96mm); Overall length: 6" (120mm)
- Screws: Supplied; screw diameter ~0.068 inch
- Mount: Back-mount concealed installation; pack of 10
Pros
- Very easy installation; works with a powered screwdriver
- Smooth, high-quality finish that looks upscale
- Sturdy enough for larger drawers per reviews
Cons
- Edge thickness may not fit very thin drawer fronts
- Aluminum feel can seem lightweight compared to solid metal bars
Best For: Modern kitchens & minimal cabinet looks

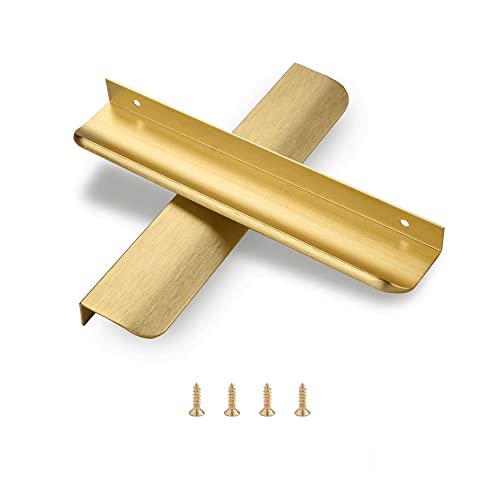

Check Latest Price on Amazon3. Satanga Edge Finger Tab Pulls for cabinets Kitchen Invisible Hardware Concealed Drawer Pull Aluminum Hidden Door Handles Pack of 10 Modern Brushed Gold 7.87" Overall Length Easy Installation
A longer concealed edge pull (6.3" CC / 7.87" overall) for wide drawers and contemporary cabinetry. Installs quickly and gives a continuous minimalist appearance without visible hardware on the face.
Key Specs
- Material: Aluminum with brushed gold finish
- CC: 6.3" (160mm); Overall length: 7.87" (200mm)
- Height: 0.7" (18mm); Width: 1.65" (42mm)
- Mount: Back-mount concealed; pack of 10
Pros
- Great visual line for wide drawers and modern designs
- Easy to install with included screws
- Positive reviews for look and smooth finish
Cons
- May be overkill on small drawers or thin fronts
- Gold finish varies slightly between batches per some users
Best For: Long drawer fronts and continuous runs

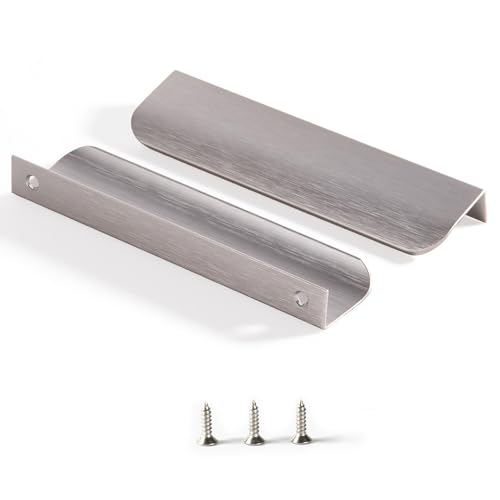

Check Latest Price on Amazon4. Satanga Edge Finger Tab Pull for cabinets Kitchen Concealed Drawer pulls Aluminum Flat Hidden Back Mount Door Handle for Home Pack of 10 Modern Brushed Nickel 7.87" Overall Length Easy Installation
Same build as the gold version but in brushed nickel; a longer concealed pull that provides a consistent reveal and comfortable finger clearance across wide cabinets.
Key Specs
- Material: Aluminum with brushed nickel finish
- CC: 6.3" (160mm); Overall length: 7.87" (200mm)
- Height: 0.7" (18mm); Width: 1.65" (42mm)
- Mount: Back-mount concealed; pack of 10
Pros
- Uniform look across multiple drawers
- Easy installation and feels sturdy for daily use
- Smooth finish praised by many customers
Cons
- Width may interfere with some trim profiles
- Aluminum is lighter than solid stainless options
Best For: Clean, consistent kitchen runs

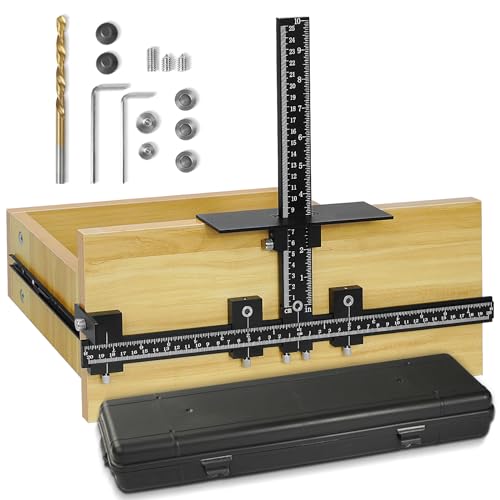

Check Latest Price on Amazon5. Vicrays Cabinet Hardware Handle Jig - Aluminum Alloy Cabinet Template Tool Woodworking Drilling Hole Doweling Guide Punch Locator for Installation Handles Knob on Drawer Door Pulls
A budget-friendly CNC-engineered aluminum jig with case-hardened steel bushings designed to deliver accurate hole placement and longevity for thousands of holes — a solid value pick for repeat installs.
Key Specs
- Material: Forged aircraft-grade aluminum
- Bushings: Case-hardened steel bushings (long-life)
- Adjustability: Supports multiple handle CC sizes
- Warranty: 120-day replacement/return policy
Pros
- Excellent value and solid build for the price
- Steel bushings improve drill accuracy and durability
- Adjustable for different handle sizes and orientations
Cons
- Hold/fastening mechanism gets mixed reviews
- Not as feature-rich as higher-priced templates
Best For: DIYers on a budget who want precision
Check Latest Price on AmazonWhich One Should You Choose?
If budget is tight → choose the Vicrays Cabinet Hardware Handle Jig (B0CJXYZG29) for good accuracy at a low price. If you need a portable, repeatable template for large runs → the TBVHOMM Aluminum Cabinet Hardware Jig (B0CMZK5M4V) gives the most durable all-metal build. If your goal is a clean, modern look with easy installs → the Satanga edge finger pulls (B0CBYGMFT1 or B0B6VVNVCJ) provide concealed mounting and quick installation.
Best for Specific Scenarios
- Full kitchen hardware swap: TBVHOMM Aluminum Jig because it speeds up layout and keeps hole spacing consistent across many cabinets.
- On a tight budget or first-time DIYer: Vicrays Jig because it balances accuracy with low cost and durable steel bushings.
- Minimalist or modern cabinetry: Satanga concealed edge pulls because they create a seamless look and install quickly with standard screws.
Frequently Asked Questions
How do I measure cabinet pulls so holes line up?
Measure the center-to-center (CC) distance — the distance between the two mounting holes — for your new pulls and mark the cabinet face using a jig or template. Confirm vertical placement (distance from top or bottom edge) with a consistent spacer or stop block, and always measure twice before drilling.
What's the fastest way to keep holes aligned across many drawers?
Use an all-metal cabinet jig with a built-in scale and hardened bushings so you can set one reference and repeat it. Clamp the jig, mark or punch your holes, then drill through the bushing with a depth-controlled bit. This eliminates cumulative measurement errors and speeds up batch work.
Can I install concealed edge pulls without a jig?
Yes, for a few drawers you can carefully measure and mark each edge by hand, but a jig reduces errors and saves time. Concealed pulls require precise vertical placement and correct screw length — a template ensures consistent pocket depth and keeps the reveal uniform.
How We Selected These Products
Our recommendations are based on data-driven analysis: we evaluated 100770+ products across 13951+ brands using a composite scoring system that weighs rating (40%), review volume (30%), price value (20%), and demand signals (10%). Every product is ranked by data, not opinions.
