How to Pick Hole Centers for Cabinet Pulls (2026)

How to Choose the Right Product

How to Choose the Right tool to pick hole centers for cabinet pulls

The core problem most DIYers face is not the pull itself but inconsistent hole placement. If centers are off even 1/8" you’ll see uneven gaps or crooked pulls. To solve this reliably, shop for hardware that clearly states its center-to-center measurement and pair it with a template, jig, or center-finder. Templates remove human error: a single aluminum or plastic drilling template clamps or aligns to the face and lets you drill every piece in the same place. For small runs, adhesive paper templates or a printed pattern can work; for full kitchens, invest in a reusable jig.

Another key is matching the pull to door thickness and screw length. Many packs include multiple screw lengths; verify the included 1" and 1.77" screws will reach through your cabinet face into the pull. If the hardware is hollow or light-weight, it can flex if mounted on very thin doors — use backing or thicker screws for better stability. Consider material: stainless steel or aluminum resists corrosion and keeps consistent fit over time, while plated finishes vary in durability.

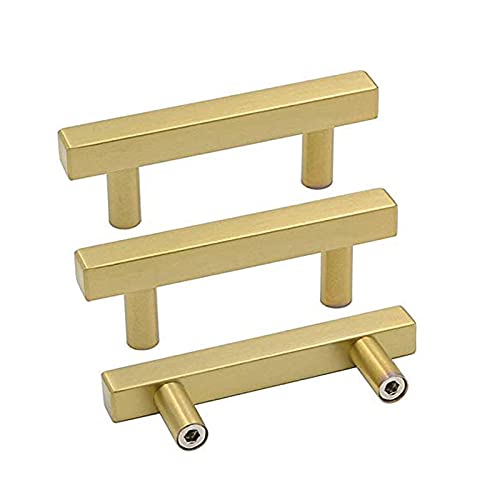

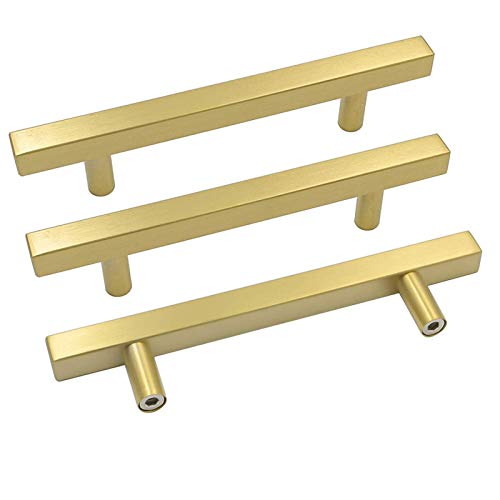

Common hole-center sizes to memorize: 2.5" (about 64 mm) for small drawers, 3" (76 mm) and 4" (102 mm) for standard drawers, 6.25" (160 mm) for medium-wide fronts, and 10" (254 mm) for very wide furniture drawers. When measuring, use center-to-center (not overall length) and double-check with a converter if you’re switching between inches and millimeters — rounding differences can cause misfits. Always mark both mounting points and create a single-template reference (a piece of scrap wood clamped to the face works wonders).

Tools and features that help prevent misaligned holes: drilling jig or template, tape measure with mm scale, center-finding bit or punch (to prevent bit walk), clamp, and a level for visual checks. If reusing older pulls, measure the existing hole centers and use a converter or adapter plate if needed. For repair or relocation of misaligned holes, use wood plugs, filler, or Rosette plates sized to cover previous holes and re-drill using a template.

Budget Tiers

Budget: Look for clear hole-center specs and included screws; saves money on multi-room installs but check build feel and finish durability. Mid-range: Better finishes and larger packs; typically good balance of quality and value and often the best choice for homeowners. Premium: Higher perceived quality, protective packaging and sometimes thicker materials — useful if you want a heavier feel or longer-lasting finish. Match the tier to project scope: single-drawer fixes can use budget options; whole-kitchen remodels benefit from mid-range or premium to minimize callbacks.
