How to Reinforce Tarps for Repeated Tailgate Use (2026 Fixes & Kits)

How to Choose the Right Product

How to Choose the Right Reinforced Tarp or Repair Kit

When the problem is repeated tailgate use, the failure points are predictable: single small grommets concentrate load, thin material frays at the hem, and frequent tying and untying produces abrasion. To prevent grommet tear and edge failure, focus on three things: material thickness/ weave, edge reinforcement, and the tie point design.

Material thickness and weave: thicker polyethylene (20 mil and up) with a dense weave (e.g., 16x16, 370 GSM) resists puncture and slitting. For light duty or shorter runs, 12–14 mil tarps with reinforced tie points can be fine and are easier to handle. Choose thinner for portability and thicker for long‑term heavy hauling.

Edge reinforcement: look for a sewn perimeter rope (4 mm) and reinforced or double‑stitched hem. These features distribute tension across a wider area and prevent the hem from ripping out when a tie pulls tight on a corner.

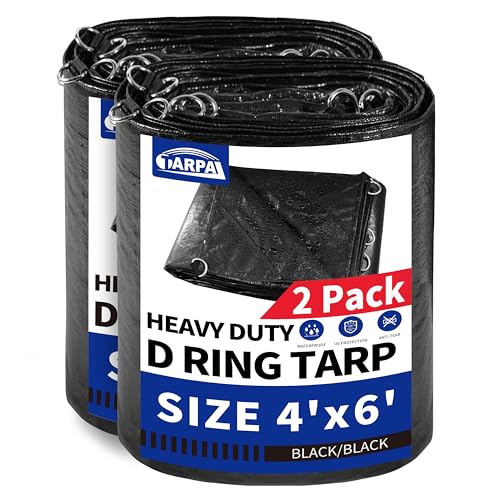

Tie‑point design: punched grommets are a common failure—either have more frequent grommets (every 12–18 inches) to spread load or switch to sewn D‑rings or removable metal plates that don’t require punching the tarp edge. D‑rings that are stitched into heavy hem material are particularly good for repeated use because there’s no hole in the sheet to propagate a tear.

Installation and repair options: if you already have a tarp, use reinforcement patches (adhesive vinyl/polyethylene patches or heavy canvas patches sewn and sealed) around tie points, install snap‑in metal grommet kits designed for polyethylene (use backing washers and patch plates), or convert single grommets to D‑ring assemblies with riveted plates. For permanent high‑stress uses, consider replacing grommets with stainless steel ring plates or adding wooden or aluminum spreader boards behind the hem to distribute load.

Budget Tiers

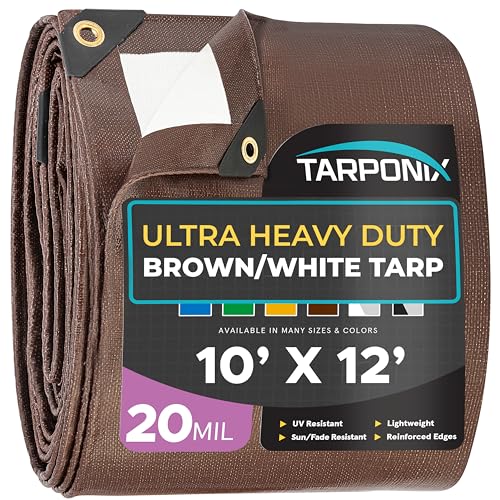

Budget (light to moderate use): 12–14 mil tarps with reinforced hems and D‑rings are best for hobby haulers or seasonal use. They’re lighter, easier to store, and affordable. Mid‑range: thicker tarps with sewn perimeter rope and frequent brass grommets for regular hauling. Premium: 20 mil+ tarps with heavy weave, brass grommets, reinforced corners and sewn rope for contractors and daily hauling — these cost more but solve grommet tear and edge fraying for years.
