Best Replacement Filters for Return Grilles: Fit & Seal Guide (2026)

How to Choose the Right Product

How to Choose the Right Replacement Filters for Return Grilles

The core problem most shoppers face is not filtration performance alone but air bypass: gaps between the filter and grille let return air skirt the media, reducing efficiency and allowing dust into the system. Solving leakage starts with three things: accurate measurement, the right filter depth, and a grille or filter frame that resists flex.

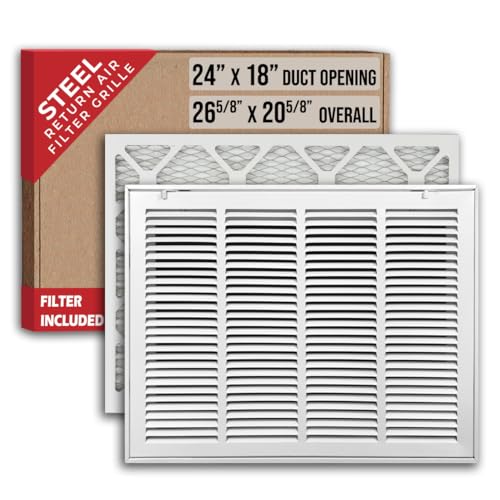

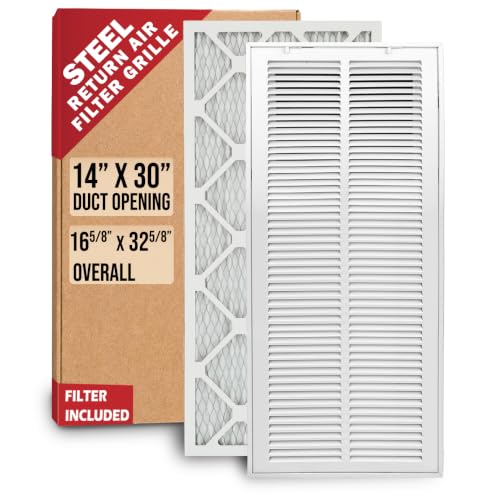

1) Measure twice: know the wall/ceiling opening dimension (this guide’s Handua grilles list the opening size you should order). Be aware that many pleated filters list nominal sizes (e.g., "20x20x5") while actual dimensions can be slightly smaller — always check the actual size on the package so the filter fills the slot without loose edges.

2) Pick the correct depth: thicker filters (2–5" or deep-pleat packs) resist bending and often fill the slot more completely, but your grille must accept that depth. Many grille faceplates only accept 1" media; using a thicker filter without the proper frame can cause fit and air restriction problems. If leakage is the main issue, a rigid 4–5" filter or a steel return grille that clamps a 1" filter evenly can both be valid fixes — the goal is a consistent, square seat with no bowing.

3) Choose a frame that holds its shape: metal grilles (stamped steel or aluminum) and reinforced frames (beverage-board with dual wire backing) are best at resisting flex. Frames with an integrated gasket, a removable face that clamps the filter, or screw mounting around the flange deliver the most repeatable seal. If you’re using a filter-only solution, prioritize filters with rigid frames and dual-wire backing; they stay square and reduce gaps.

4) Seal and install properly: use closed-cell foam tape or thin weatherstrip at the rear edge to seal any remaining small gaps. For irregular openings, consider a grille that mounts to the wall with a flange or add thin bead caulk behind the grille flange. Avoid relying on friction alone — mechanical fastening or the grille’s latch/door is more reliable long-term.

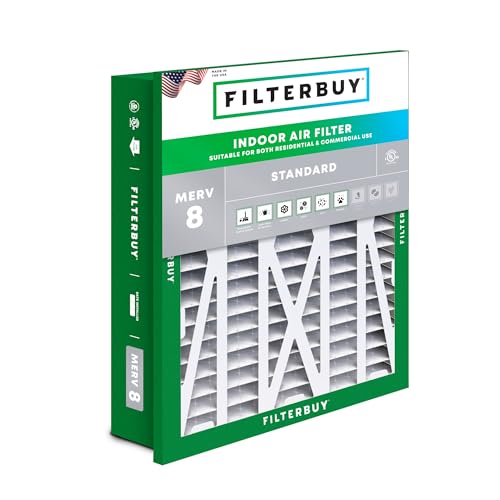

5) Match filtration to airflow: higher MERV ratings capture more particles but can reduce airflow if the filter is too dense for your system. For most homes trying to eliminate bypass and protect equipment, MERV 8 in a rigid frame is an optimal balance. Lastly, prioritize ease of replacement: a grille with a removable door or a filter that slides in without compressing ensures you’ll maintain the seal through regular changes.

Budget Tiers

Budget: Basic reinforced pleated filters — lower cost, decent seal vs fiberglass but measure actual dimensions carefully. Mid-Range: Metal grilles that include a filter slot or better-quality pleated filters with sturdier frames. Premium: Deep-pleat replacement filters or heavy-gauge metal grilles with gaskets and secure latches — best for stopping bypass reliably.
